JBL GX628

GX628

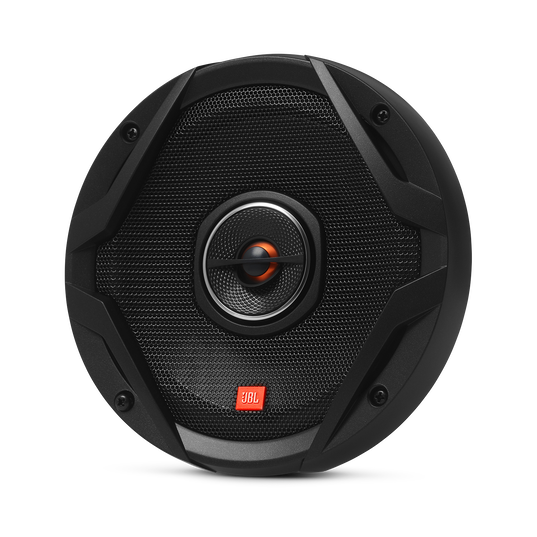

6-1/2" Coaxial Car Audio Loudspeaker

Variations
RM 668.00668.0 per pair



For Bulk Enquiry: Click Here

Features

Plus One™ Woofer Cones

Plus One™ Woofer Cones

HARMAN’s patented (US patent #7,548,631) Plus One™ polypropylene cones provide more overall speaker-cone area than other cones in its class. The result is higher sensitivity, increased low-frequency output and greater overall perormance.

Edge-Driven Soft Dome Tweeter

Edge-Driven Soft Dome Tweeter

Edge-driven dome tweeters provide better power handling than balanced-dome tweeters by providing more heat-dissipating surface area in the voice coil. We use larger tweeter diaphragms because we always know where the listeners will sit in a car. It’s not like in a house, where many listening positions must be accommodated.

Three-ohm DCR Voice Coils

Three-ohm DCR Voice Coils

Low-Impedance, three ohm voice coils compensate for the undergauged speaker wiring found in many of today's cars, and make the most of every watt your amplifier or head unit can deliver.

Frequency Response Up To 21kHz

Frequency Response Up To 21kHz

Hear what you’ve been missing – the JBL GX Series offers a frequency response that delivers the full-range response associated with exceptional sound.

Individually Voiced

Individually Voiced

For most brands, off-the-shelf speakers and a cursory approval of frequency response curves are good enough. That’s not the case with JBL. We don’t only listen to our speakers against the competition – we voice them against each other to ensure each line has the consistent JBL sound signature that’s known and sought out by those who care about their audio. This is just part of an extensive development process undertaken by some of the best transducer engineers in the world to provide the fi nest listening experience at any price point.

HARMAN-Proprietary Tweeter Deflector

HARMAN-Proprietary Tweeter Deflector

Acting as a waveguide, the tweeter deflector allows for an angled, rotating speaker, which optimizes the off-axis sound performance. Because all cars are designed differently, this allows impeccable sound to travel throughout all locations in the cabin.

Affordable Pricing

Affordable Pricing

The JBL GX Series is designed to give audio enthusiasts more boom for the buck – while it maintains a conservative price point, there is never a compromise in sound.

OEM-Level Reliability Testing

OEM-Level Reliability Testing

JBL tests every speaker design to the same rigid specifi cations as the automakers, subjecting them to extreme conditions that would break lesser speakers. We freeze them, bake them, shake them, blast them with ultraviolet light and drive them at full power for days to make sure your audio investment lasts for years.

Specs & Downloads

Item# GX628

Product Description

High - Energy JBL Pro Sound Takes To The Road

Designed to fit into 6" factory locations without vehicle modification, the GX628 delivers high-energy JBL pro sound for in vehicle applications. Leveraging our patented Plus One™ woofer cone with three Ohm voice coil and edge-driven soft-dome tweeter mounted into our all new proprietary tweeter deflector, all individually voiced to deliver authentic JBL pro sound for your next roadtrip. To ensure that you get a great performance even with the windows down, the three ohm voice coil extracts more power from the amplifier, delivering high output and deeper bass.

General Specifications

Power Handling 60W RMS, 180W Peak
Frequency Response 50Hz – 21kHz
Impedance 2.3 ohms
Sensitivity (@ 2.83V/m) 92dB

What's in the box?

  • 2x Speakers
  • 1 x Gasket foam
  • 8 X Long mounting screws
  • 8 x Speed clips
  • 2 x Grilles
  • 2 x Plastic multi-hole adapter rings
  • 8 x Short mounting screws
