Features
SSI™ (Selectable Smart Impedance)
Most car audio system designs call for 2- or 4-ohm impedance. Series II subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.
Specs & Downloads
Item# JBLCLUB1224
Product Description
Strong on performance, big on flexibility.
Car audio systems rely on powerful bass for great sound. System designers look for configuration flexibility. The Club Series deliver both. Designed to suit a range of applications, these 10- and 12-inch subwoofers produce signature JBL bass performance in sealed or vented enclosures. But the flexibility doesn’t end there. These subwoofers feature SSI™ (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance—2 or 4 ohms—for your system. So you get the powerful JBL bass you want, in the configuration you choose.
General Specifications
Description

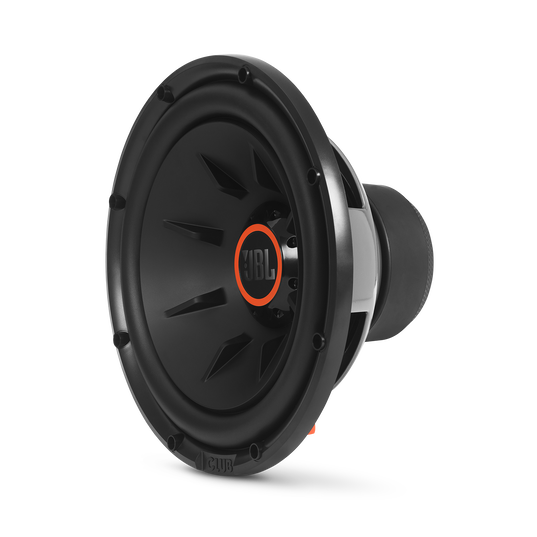

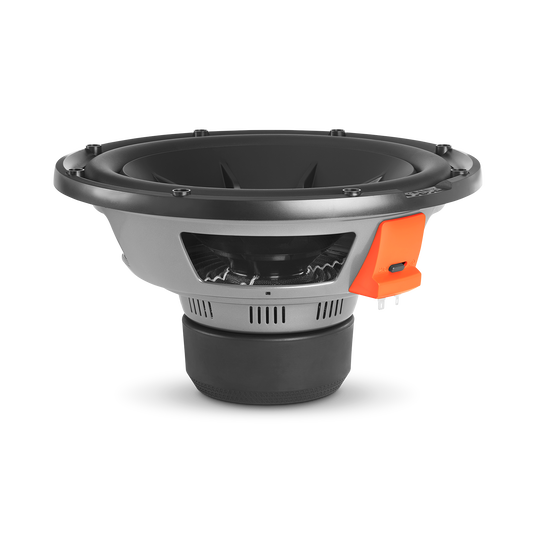

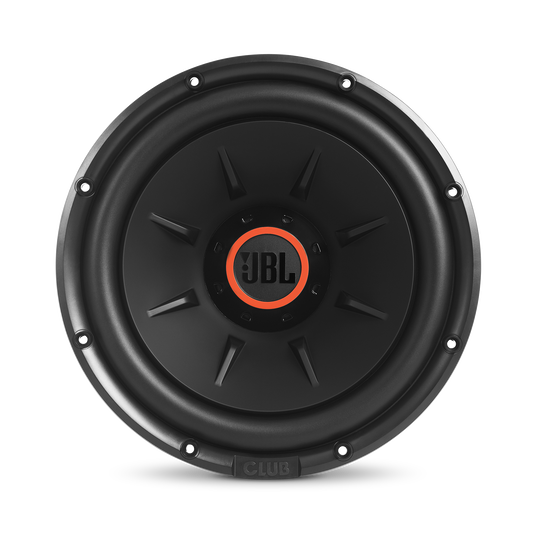

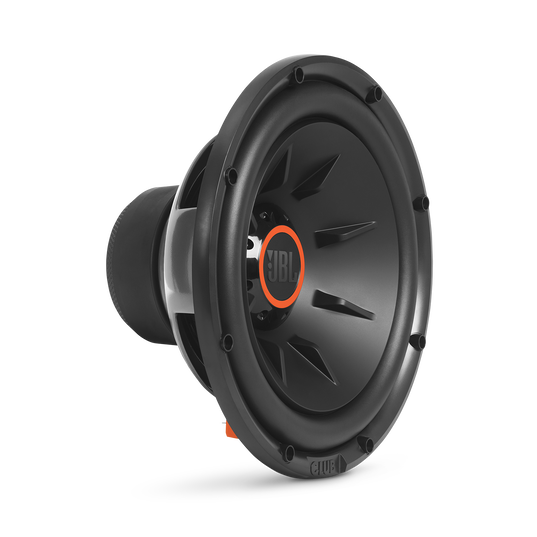

12" (300mm) car audio subwoofer
Power Handling
275W RMS, 1100W peak
Sensitivity (@ 2.83V)
93dB
Frequency Response
25Hz – 175Hz
Voice Coil Diameter
2" (50mm)
Impedance
2 or 4 ohms.
What's in the box?
- 1 x Subwoofer
- 1 x Owner’s manual
