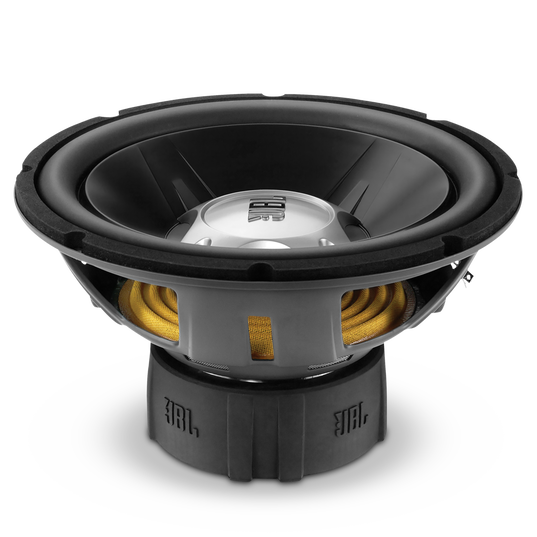

JBL GT5-12

GT5-12

30 cm (12 inch) subwoofer, with high output, can take peak load of 1100 Watts

Variations



For Bulk Enquiry: Click Here

Features

Big bass with Polypropylene woofer cone

Big bass with Polypropylene woofer cone

Road noise can destroy realistic audio that always requires true low frequencies. Polypropylene delivers rigidity, with good internal damping, and complete weather-resistance. You get an impossible-to-miss increase in thumping bass.

Outstanding audio output, low distortion

Outstanding audio output, low distortion

With 250 watts RMS and 1100 watts of peak power handling, the GT5-12 changes the experience of listening to your favorite music in your car. And a progressive spider gives better control for lower distortion at excursion limits.

Exceptional venting for increased power handling

Exceptional venting for increased power handling

Woofer motor structures heat up during use, causing distortion, or power compression that reduces music’s dynamic range, robbing the sound of realism. JBL uses vented motor structures and polepieces that get rid of more heat to deliver more serious bang.

Enclosure up to JBL Professional standards

Enclosure up to JBL Professional standards

It’s built to the same exacting standards as JBL professional audio boxes with 3/4" medium-density fiberboard construction, and high-quality binding-post terminals. Wide-bandwidth design provides more output between 20Hz and 40Hz. You get all the bass you’ve paid for.

Accurate frequency response

Accurate frequency response

With a frequency response of 23Hz – 450Hz, the GT5-12 reproduces deep, teeth-rattling bass tones without distortion.

Specs & Downloads

Item# GT5-12

General Specifications

Size 12"
Series GT5

Audio Specifications

Peak Power 1100W
Nominal Impedance 4 ohms
Power Handling (RMS) 275W
Frequency Response 27Hz–450Hz
Power Handling (Peak) 1100W
Sensitivity (2.83V/1m) 90dB

Dimensions

External Diameter (in) 12-5/16
External Diameter (mm) 313
Mounting Depth (in) 6-7/16
Mounting Depth (mm) 164
Mounting Cutout Diameter (mm) 286
Mounting Cutout Diameter (in) 11-1/4

What's in the box?

  • (1) GT5-12 12” Single 4-Ohm Subwoofer
  • (1) Owner's Manual
