An advanced-design, shallow-mount, 4-ohm dual voice-coil subwoofer delivering phenomenal bass in a small space

For Bulk Enquiry: Click Here

The skinny on resounding bass with 4-ohm impedance.

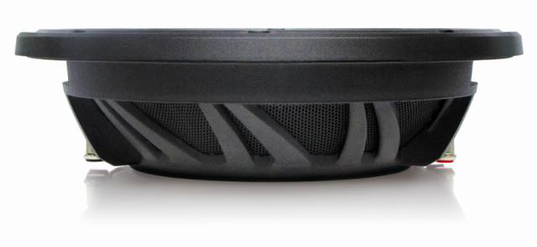

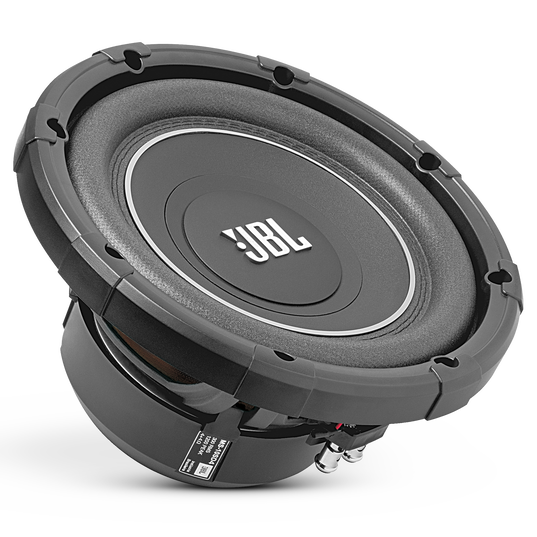

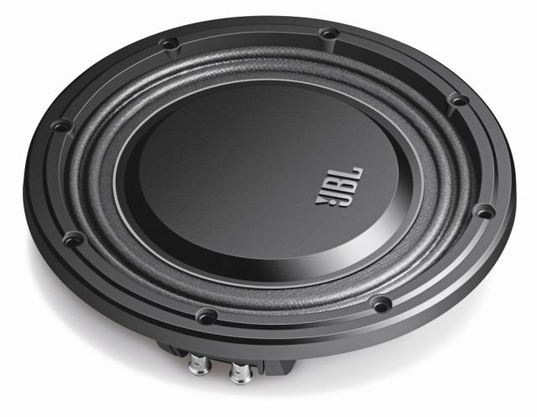

The JBL® MS-10SD4 SLIM subwoofer is a 10-inch (250-millimeter), high-performance, premium subwoofer with advanced materials and manufacturing processes. The outstanding attribute of this subwoofer is its very minimal installation-depth requirement of just 2-3/8 inches (60 millimeters). Its dual voice-coil design allows for a wide variety of connection options using one or more subwoofers (4+4 ohm), no matter what amplifier drives them. Its advanced components include a reinforced flat-piston polypropylene cone, progressive spider, dual-roll fabric surround and nonmagnetic, cast-aluminum frame for high-energy transfer into its vented voice coils. Its power handling is 250 watts RMS (1000 watts peak), so it makes an excellent choice for virtually any system configuration and doesn’t need a monster power amplifier dedicated just to driving it. But perhaps the greatest installation benefit of this sub is its very modest enclosure volume requirements. The sub installs in just 2-3/8 inches (60 millimeters) of depth, which leaves a lot of room for passengers, cargo or other items. Quite simply, this subwoofer is loaded with the kind of premium features and innovation that you’d expect from the JBL brand.

Item# MS-10SD4 SLIM

General Specifications

Size 10

Audio Specifications

Peak Power 1000W
Power Handling (RMS) 500W
Frequency Response 34Hz-800Hz
Nominal Impedance 4+4 ohms
Sensitivity (1 W @ 1m) 86dB SPL
Power Handling (Peak) 1000W


Mounting Depth (in) 2-1/4
Mounting Depth (mm) 60
Mounting Cutout Diameter (mm) 243
Mounting Cutout Diameter (in) 9-1/2
Click here for a complete list of all specs for this product

Spec Sheet (EN)

English 683 KB
  • (1) MS-10SD4 Slim Subwoofer
  • (1) Owners Manual

Manuals & Downloads

The latest owner's manuals, quick start guides, and documents.
