Conceal C82W
JBL JBLC82W

Conceal C82W

Dual-panel, Dual 8-inch (200mm) Invisible Subwoofer System

The JBL Conceal C82W Invisible Subwoofer System is a high-performance 2-panel design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. Each panel contains a pair of acoustically coupled 8-inch drivers. The finished loudspeaker panels install easily and disappear completely into the surrounding walls and ceiling, allowing optimal placement virtually anywhere in a house. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.
Variations

Features

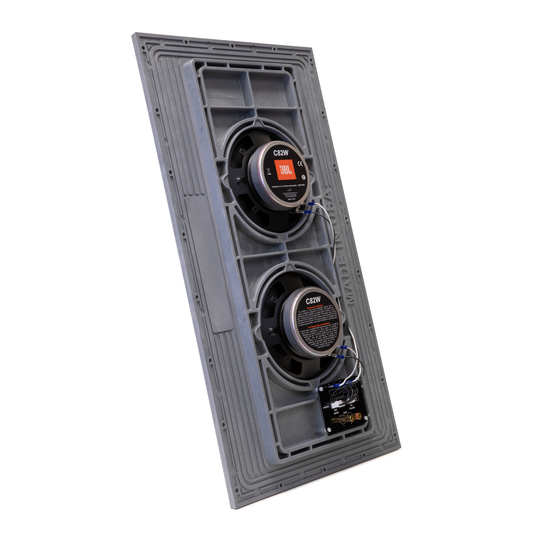

Dual-panel design each with dual 8-inch (200mm) LF drivers transducers.

Dual-panel design each with dual 8-inch (200mm) LF drivers transducers.

Proprietary FidelityGlass™ acoustic panel and compression molded baffle.

Proprietary FidelityGlass™ acoustic panel and compression molded baffle.

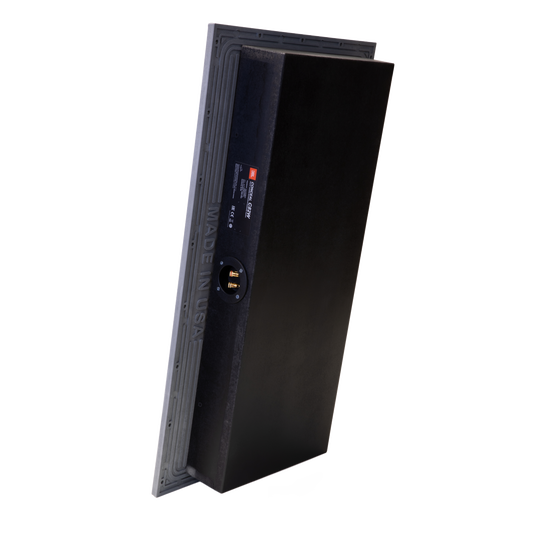

Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.

Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.

Loudspeaker system installs like a standard drywall patch.

Loudspeaker system installs like a standard drywall patch.

Paintable surface can be custom finished for complete invisibility.

Paintable surface can be custom finished for complete invisibility.

Sold in pairs.

Sold in pairs.

C30PCB Pre-Construction Boards (sold separately).

C30PCB Pre-Construction Boards (sold separately).

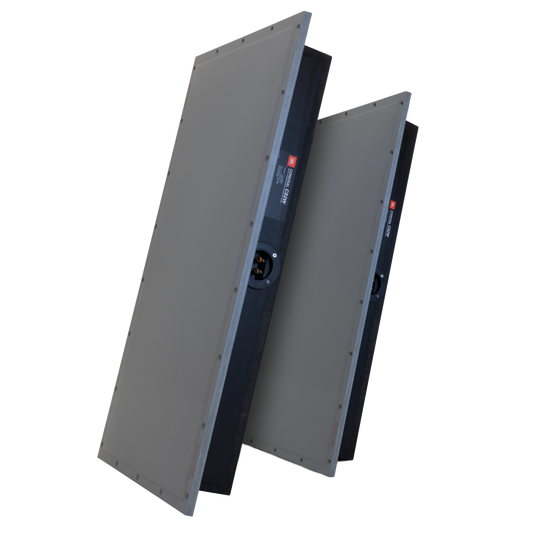

Conceal C82W - Grey - Dual-panel, Dual 8-inch (200mm) Invisible Subwoofer System - Hero

Specs & Downloads

Item# JBLC82W

Product Description

Conceal C82W

The JBL Conceal C82W Invisible Subwoofer System is a high-performance 2-panel design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. Each panel contains a pair of acoustically coupled 8-inch drivers. The finished loudspeaker panels install easily and disappear completely into the surrounding walls and ceiling, allowing optimal placement virtually anywhere in a house. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.

General Specifications

Type In-Wall/In-Ceiling subwoofer system
Low Frequency Drivers 8-inch (203mm) woofers with 1.5-inch (38mm) voice coil (2 per panel)
Recommended Amplifier Power 60 - 100 WRMS (per panel)
Impedance Selectable 4 Ohm or 16 Ohm (each panel)
Loudspeaker Sensitivity 86 dB/1W/1m measured in-room
Frequency Response 30 Hz - 300 Hz (-6 dB) measured in-room
Crossover Frequency N/A (requires amplifier with HPF and LPF)
Enclosure Type Sealed, with wooden back-box
Protection N/A (requires amplifier with limiter)
Input Type Dual gold-plated spring-loaded binding posts
Warranty 5 Years

Dimensions

Panel Dimensions 30" H x 15-7/8" W x 3-7/8" D (762mm H x 403mm W x 98mm D)
Cut-out Dimensions 30-1/8” H x 16” W (765mm H x 406mm W)
Mounting Depth 3-3/8-inches (86mm)
Product Weight 59.8 lbs (27.1 kg)
Shipping Weight 67.4 lbs (30.6kg)
