HDI-3600
brand.jbl-synthesis JBLHDI3600WAL

HDI-3600

Triple 6.5-inch (165mm) 2 ½-way Floorstanding Loudspeaker

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3600 delivers exceptional performance from a compact footprint. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 6.5-inch (165mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

Features

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

8" (200mm) Advanced Aluminum Matrix cast-frame woofers.

8" (200mm) Advanced Aluminum Matrix cast-frame woofers.

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

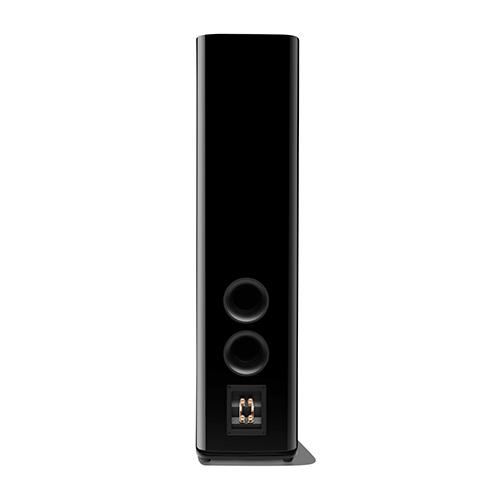

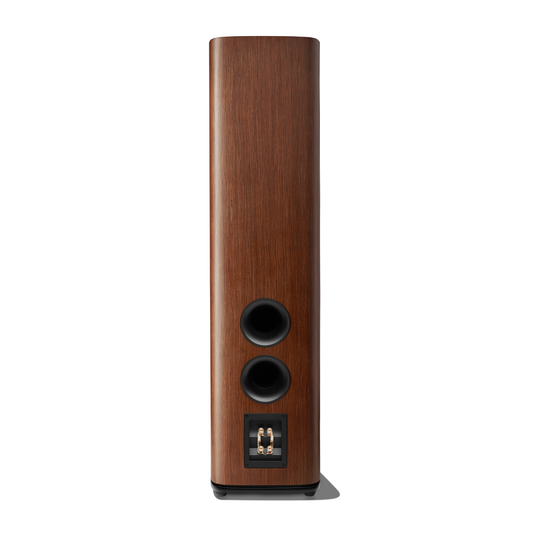

Dual rear-firing, computer-optimized flared ports.

Dual rear-firing, computer-optimized flared ports.

Advanced crossover network

Advanced crossover network

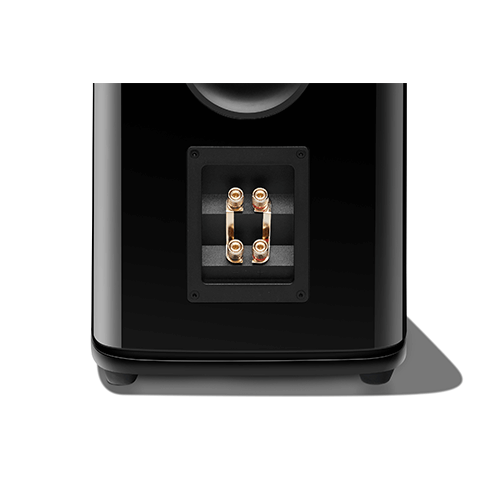

Dual sets of gold-plated binding posts with shorting straps.

Dual sets of gold-plated binding posts with shorting straps.

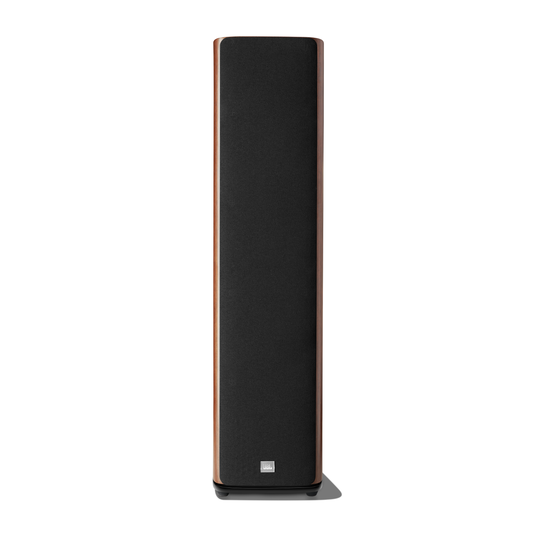

Black cloth, magnetically attached grille.

Black cloth, magnetically attached grille.

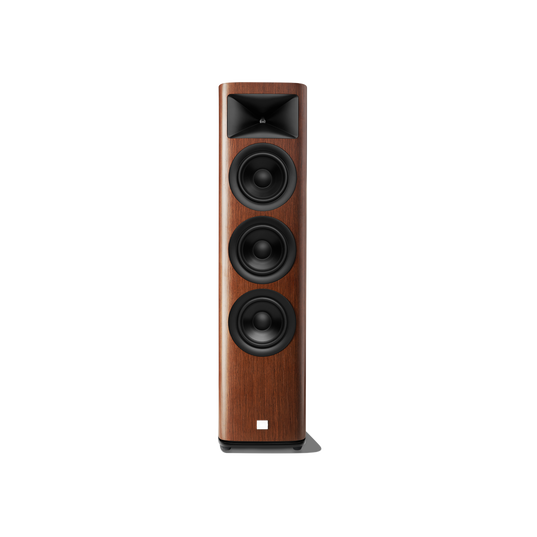

HDI-3600 - Walnut - 2 ½-way Triple 6.5-inch (165mm) Floorstanding Loudspeaker - Hero

Specs & Downloads

Item# JBLHDI3600WAL

Product Description

HDI-3600

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3600 delivers exceptional performance from a compact footprint. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 6.5-inch (165mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

General Specifications

Enclosure Type Bass-reflex design with rear-firing port
High Frequency Transducer 1-inch (25mm) Teonex compression driver
Low / Mid Frequency Transducers Three 6.5-inch (200mm) black Advanced Aluminum Matrix cone, cast frame woofers
Crossover Frequency 900Hz, 2000Hz
Sensitivity (2.83V @ 1M) 90dB
Nominal Impedance 4 Ohm
Recommended Amplifier Power 20W – 250W
Frequency Response 38Hz – 30kHz (-6dB)
Dimensions (H x W x D) 38.84 x 10.04 x 13.46” (986.5 x 255 x 341.9mm)
Net Weight 61.80 lbs (28.03kg)
