JBL 3-SERIES STUDIO MONITORS

PRO-QUALITY MONITORING FOR ANY STUDIO OR WORKSPACE

Get legendary JBL performance in your studio with the next-generation JBL 3 Series, compact powered studio monitors. Integrating the revolutionary JBL Image Control Waveguide, 3 Series MkII monitors offer stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that’s unheard of in their class. With JBL’s patented Slip Stream™ Port and 200w of power, the LSR310S subwoofer adds deep, accurate bass to your monitoring system. Whether you’re working in stereo, 2.1, or beyond—the 3 Series family will enhance the critical listening capabilities of any production space—and deliver an enjoyable mix experience at an accessible price.

Compare Models

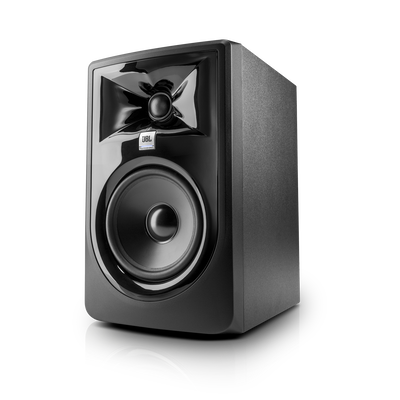

305PMKII-

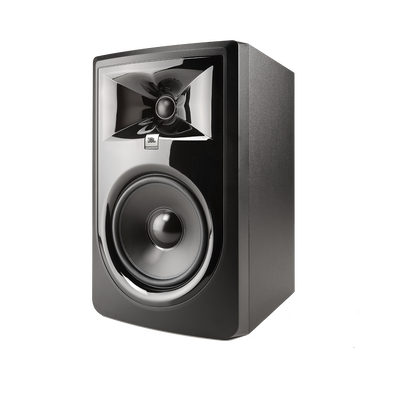

306PMKII-

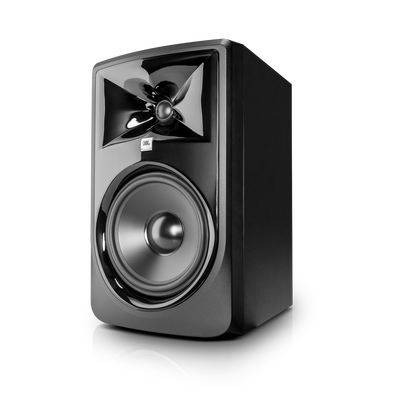

308PMKII-

$MB.langkey.compare.heading

What's in the box

What's in the box
  • 1 x 305P MkII studio monitor
  • 1 x Power cord
  • 1 x Quick setup guide
  • 4 x Peel-off rubber pads
  • 1 x Power cord
  • 1 x Quick setup guide
  • 4 x Peel-off rubber pads
  • 1 x 306P MkII studio monitor
  • 1 x Power cord
  • 1 x Quick setup guide
  • 4 x Peel-off rubber pads
  • 1 x 308P MkII studio monitor

General Specifications

LF Driver Size
127 mm (5")
165 mm (6.5")
203 mm (8")
HF Driver Size
25 mm (1")
25 mm (1")
25 mm (1")
Crossover
1725Hz 4th order acoustic Linkwitz-Riley
1425Hz 4th order acoustic Linkwitz-Riley
1800Hz 4th order acoustic Linkwitz-Riley
Frequency Response
49Hz – 20kHz (±3dB)
47Hz – 20kHz (±3dB)
45Hz – 20kHz (±3dB)
Frequency Range
43Hz – 20kHz (-10dB)
39Hz – 24kHz (-10dB)
37Hz – 24kHz (-10dB)
Maximum Continuous SPL
94dB
92dB
102dB
Maximum Peak SPL
108dB
110dB
112dB

Dimensions

Height
298 mm (11.7")
361 mm (14.2")
419 mm (16.5")
Width
185 mm (7.3")
224 mm (8.8")
254 mm (10")
Depth
231 mm (9.1")
282 mm (11.1")
308 mm (12.1")
Net Weight
4.73 kg (10.43 lbs)
6.1 kg (13.42 lbs)
8.1 kg (17.87 lbs)

Expand Your Sound

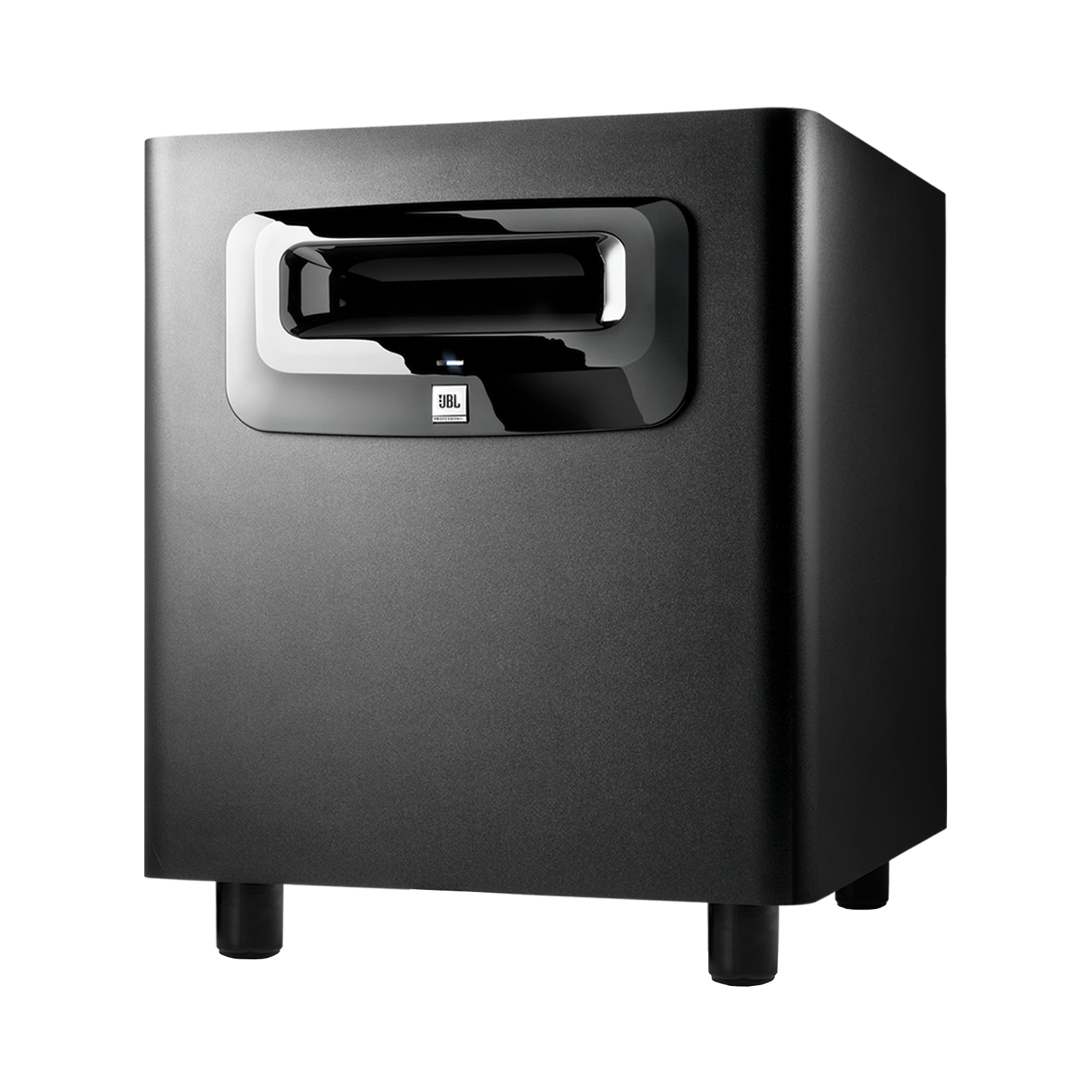

The optional LSR310S subwoofer allows you to extend the bass response of the 3 Series monitors even further. It incorporates the patented JBL Slip Stream™ Port, which works in concert with a custom 10" down-firing driver and a 200 Watt amplifier to add deep, powerful bass to any studio monitor system. The XLF Extended Low Frequency Setting, a JBL first, activates a specially-engineered tuning that emulates the ample bass tuning used in today's dance clubs. The LSR310S offers plenty of other professional features including balanced inputs and outputs, selectable input sensitivity, and a choice of three crossover settings.

JBL LSR310S
10" Powered Studio Subwoofer
N/A
